SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Origin: Mainland China

Engine: 4 Stroke

Key Features

Fast & Powerful: A 4-stroke engine with a maximum output of 5.1kW and 7hp, and a maximum
speed of 6000rpm, provides you with unparalleled speed. The streamlined
design of a 6.3'' three-blade propellercan reduce water resistance and
provide stronger power during operation.

Selected Material: Lightweight and sturdy aluminum alloy, combined with spray painting technology,
provides excellent corrosion resistance, wear resistance, heat
resistance, shock resistance, deformation resistance, and other
properties. You can use it with confidence in fresh water and salt
water.

Easy to Operate: The throttle lever directly controls acceleration and steering. The
step-less speed regulation allows you to easily adjust the running
speed, combined with simple gear shifting (forward, neutral, or
reverse), bringing you a more comfortable and convenient user
experience.

Stable Engine: A complex and exquisite 4-stroke engine is more fuel-efficient and quiet,
which can give you a longer and more stable performance and reduce
environmental pollution.

Fuel-efficient: An efficient carburetor burns fuel more fully with a fuel consumption rate
of about 0.39 gal/h, not only saving fuel but also reducing expenses,
making it very suitable for small ships and people who frequently
navigate short distances.

Safe & Reassuring: The reliable TCI ignition system can quickly and safely start the
motor, and suspension tilt adjustment pins and anti-vortex plates reduce
inclination and vortices, ensuring smooth operation. The efficient heat
dissipation holes coupled with overheating protection, allow you to
continuously enjoy the fun of the navigation.

Complete Set: In addition to the outboard motor, our package also includes a funnel, a
tool kit, etc., which can meet your usage needs at once.

Protective Packaging: This product comes in a custom foam that resists common compression and falls to prevent product damage in transit as much as possible.

Details

Tail Plate Clamping Bolt: It can firmly fix the outboard motor on your ship and is not easy to slide.

Flameout Rope: It allows you to immediately stop the machine running and avoid danger in case of an emergency.

Rubber Handle: The handle wrapped in rubber provides a more comfortable and secure grip, enhancing the sense of use.

Oil Bubble: With this red oil bubble, the carburetor can feed oil faster and more conveniently.

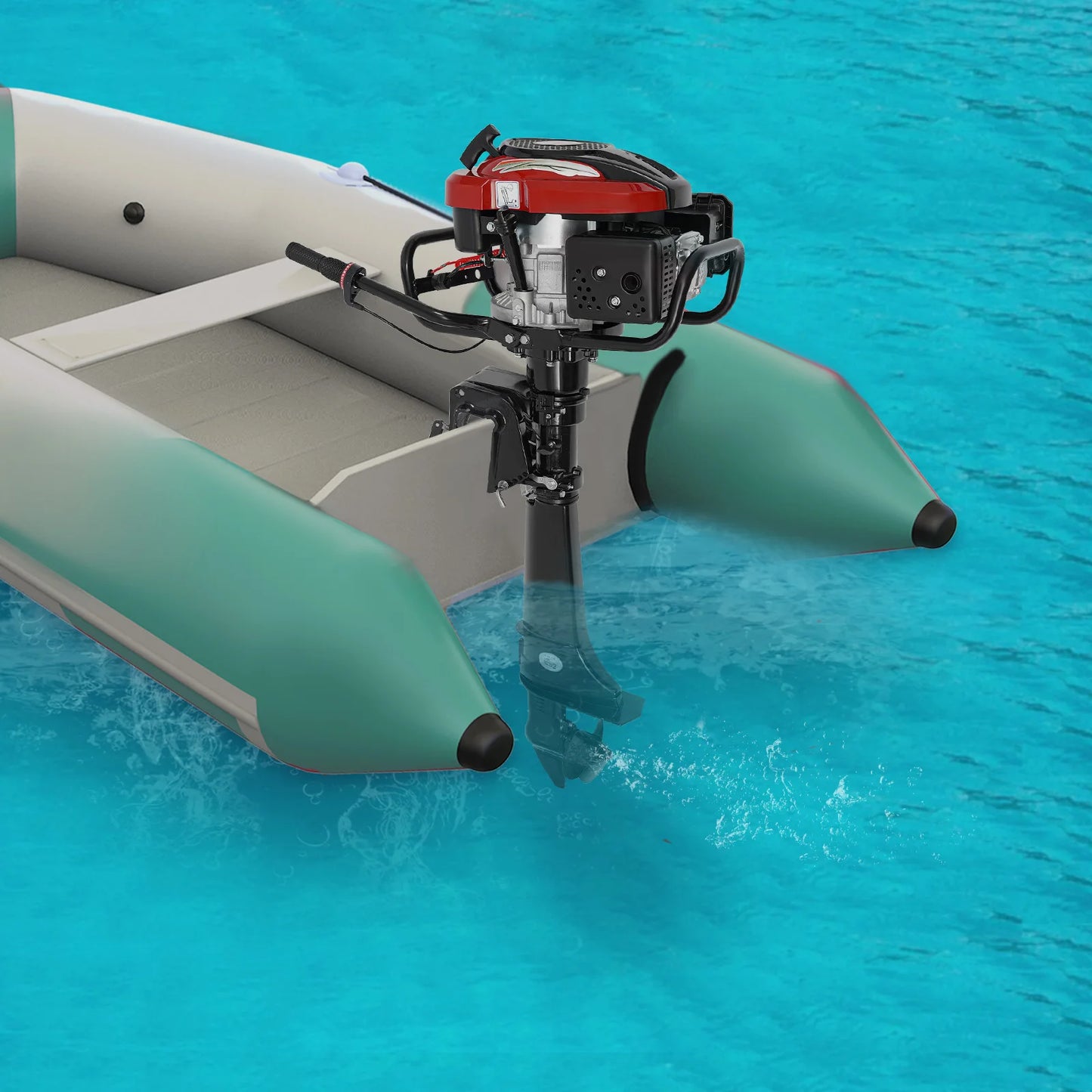

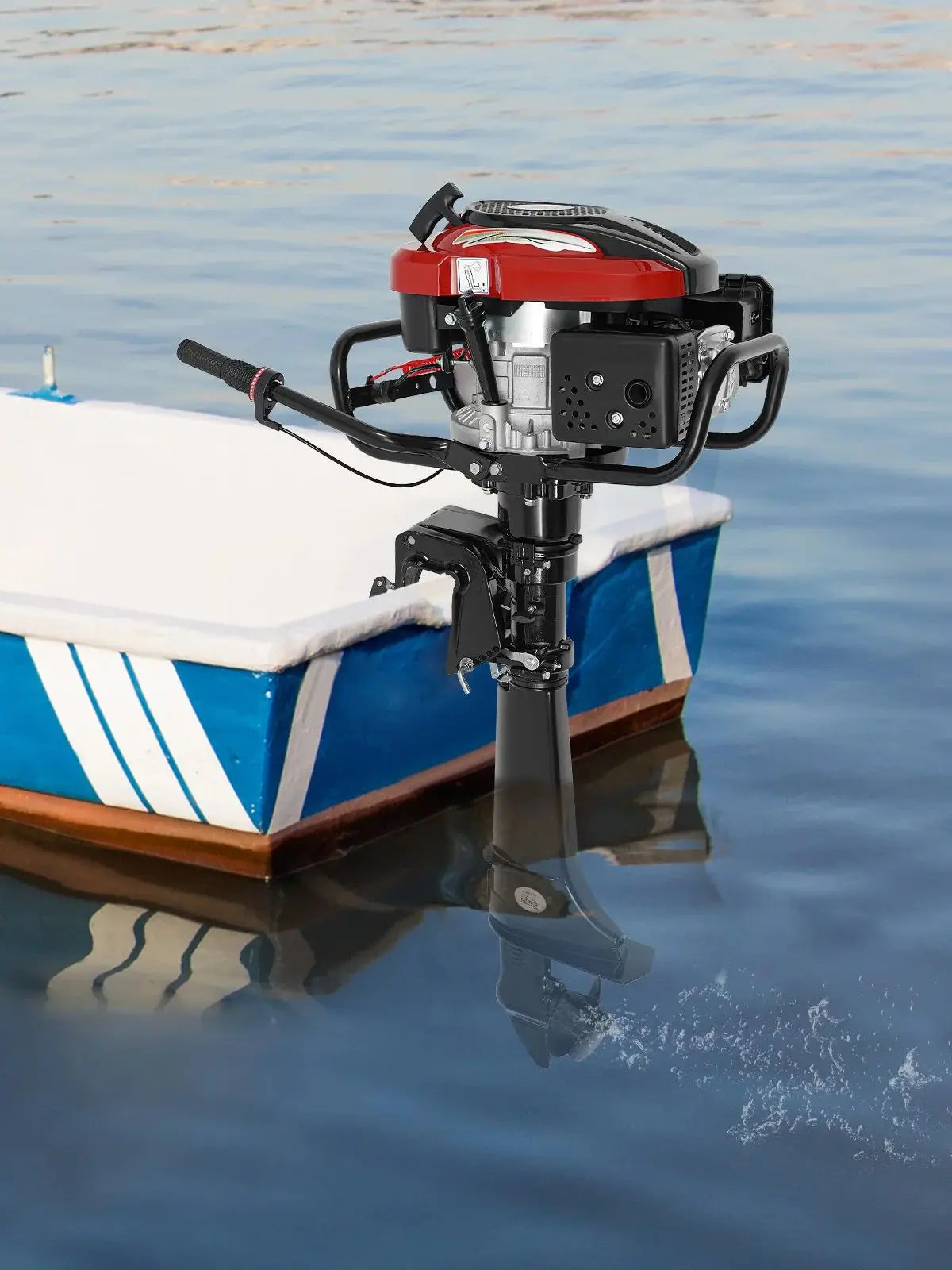

Application

It
is suitable for rubber boats, inflatable boats, fishing boats,
sailboats, yachts, canoes, kayaks, rubber boats, aluminum alloy boats,
etc. with a stern height of 19.88 inches or less, assisting aquaculture,
water transportation, net fishing, luring, outboard backup, outings,
and river cleaning/maintenance.

Specifications

Material: Aluminum Alloy, Rubber

Color: Black

Surface Treatment: Spray Paint

Assembly Required: No

Number of Items: 1

Engine: 4-stroke 7hp

Displacement: 196cc

Gear Ratio: 2.08(27:13)

Number of Cylinders: 1

Max. Output: 5.1KW

Max. Speed: 4500-6000r/Min

Gear Positions: F-N-R

Ignition System: TCI

Cooling System: Air-cooling

Control System: Tiller Control

Starting System: Manual Start

Fuel: No.92 Lead-freeGasoline or Above

Engine Oil Type: 4-stroke Engine Oil

Trim And Tilt System: Manual Tilt

Fuel Tank Capacity: 1.4L/0.37gal

Fuel Consumption Rate: About 1.5L/0.39gal/h

Propeller Diameter: 16cm/6.3in

Joystick Length: 42cm/16.53in

Handle Length: 13cm/5.12in

Fixed Screw Spacing: 15cm/5.9in

Adaptive Transom Plate Height: ≤50.5cm/19.88in

Gross Weight: 30kg/66lbs

Net Weight: 25.95kg/57.2lbs

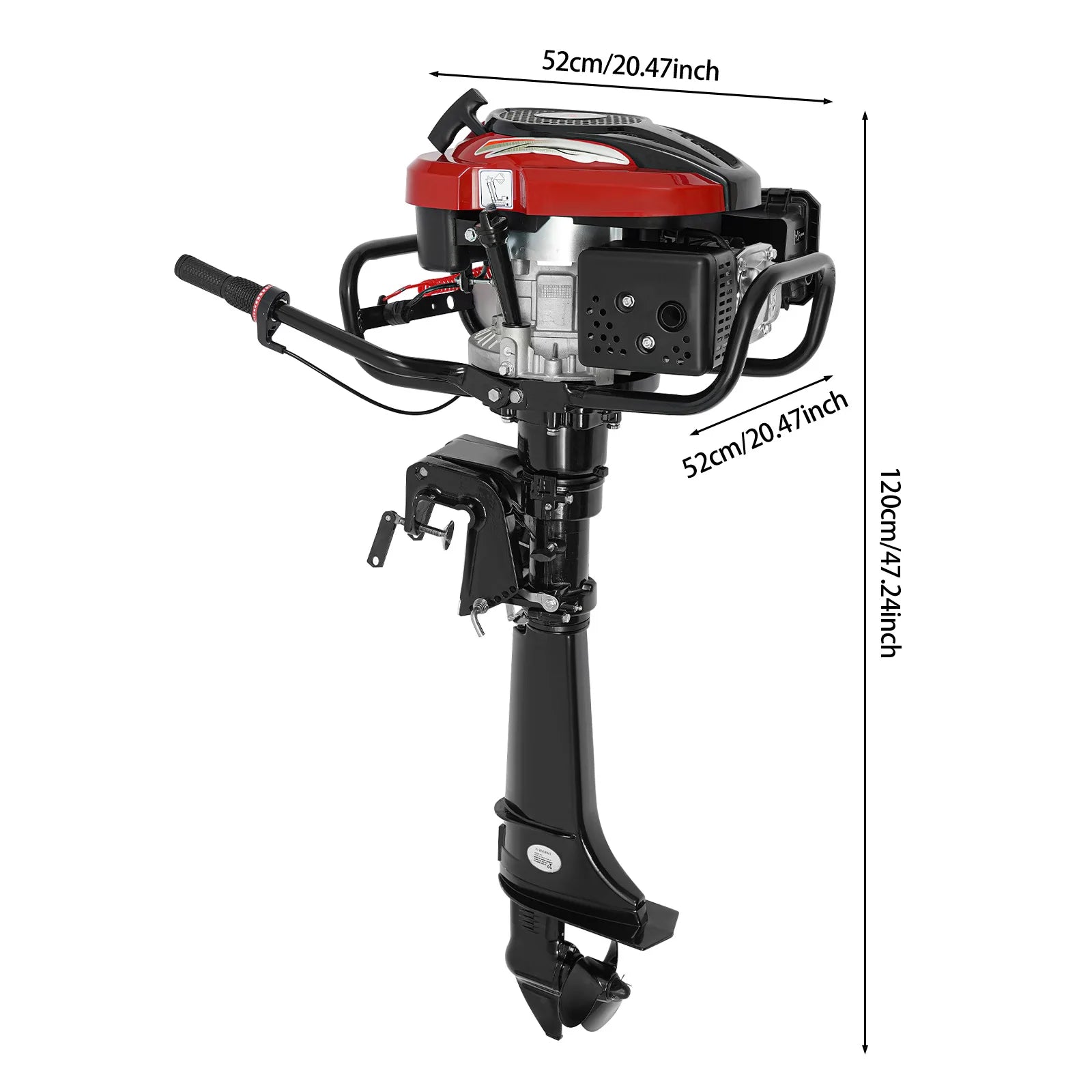

Product Size: 53*35*117cm/20.86*13.78*46in

Package Size: 123*43*60cm/48.42*16.9*23.62in

Package Included

1x Outboard Motor

1x Tool Kit

1x Funnel

1x English Manual

Notes

1. Please carefully read the manual and strictly follow the precautions to have a better experience.

2. Please measure the height of your boat before purchasing to ensure suitability for this product.

3. Please start the motor in the water.

4. Please
note that this product should use 92 # unleadedgasoline or above, and
an appropriate amount of 4-stroke engine oil needs to be added through a
dedicated oil filling hole for lubrication.

5. Please
do not drive too fast during the running-in period. After the
running-in period, the gear oil needs to be replaced, and the second
replacement time is about 100 hours or 6 months later.

6. After
cruising in seawater or turbid water, please clean the outboard motor
with fresh water. The engine should be stored in a dry and
well-ventilated place, and avoid direct exposure to sunlight.

7. If not in use for a long time, please thoroughly clean the gasoline in the fuel tank.

8. Please
allow the slight color difference caused by the shooting light and
1-3cm error due to manual measurement, and make sure you do not mind
before you order
